API 5CT Casing and Seamless Oil Pipe with L245MB/NB Grade Copper Coated for Long Lifespan

  • 1
  • 2
  • 3

Grade : K55, J55, L80-1 ,N80,C90,C95, P110, T95

Specification : 2 3/8"-4 1/2"*0.167"-0630"

Out diameter : API J55, API K55, API L80,

Application : Oil Pipe

Surface : Copper Coated

Brand Name : Best

Model Number : 114.3 - 508 mm

Certification : API

Place of Origin : China

MOQ : 1 Tons

Price : 600 usd/ton

Payment Terms : L/C,D/A,D/P,T/T,Western Union,

Supply Ability : 100000Ton/Month

Delivery Time : 5-8 working days

Packaging Details : bundle,,painting against corrosion, protective plastic caps, special packing can be offered by customer.

Standard : API 5CT, API 5D

Contact Now

Standard API 5CT Casing And Tubing L245MB/NB L290MB/NB L360 MB/NB Long Lifespan
Product Overview

Product Name: OCTG (Oil Country Tubular Goods), Tubes Suitable for Conducting Combustible Materials

We supply OCTG tubes primarily for the petrochemical oil and gas industry for pipeline construction, installation, and maintenance projects in both longitudinally welded and spirally welded types. These products can be combined with insulation and coatings.

Technical Specifications
  • Size Assortment: Ø 21.3-3500 mm
  • Standards: EN 10208-1, EN 10208-2, API 5CT, API 5D
  • Qualities: L245MB/NB, L290MB/NB, L360 MB/NB, L290 NB/MB, L415 NB/MB, L210GA, L235GA, L245GA, L290GA, L360GA
  • Lengths: 4-13 (20) m
API 5CT Product Details

Steel Grades: K55, J55, L80-1, N80, C90, C95, P110, T95

Size Range: 2 3/8" - 4 1/2" × 0.167" - 0.630"

Product Types & Applications
  • Casing Pipe: Serves as walls of a well
  • Tubing Steel Pipe: For oil extraction and transportation
  • Oil Casing Pipe/Steel Pipe: Including ordinary casing, anti-collapse casing, anti-corrosion casing, high-strength casing
Detailed Specifications
Tubing
  • OD: 2 3/8" - 4 1/2"
  • WT: 0.167" - 0.630"

Note: P - Plain end, N - Non upset, U - External upset, T&C - Threaded and coupled

Casing
  • OD: 2 3/8" - 20"
  • WT: 0.205" - 0.5"

Note: P - Plain end, S - Short round thread, L - Long round thread

Drill Pipe
  • OD: 2 3/8" - 5 1/2"
  • WT: 0.280" - 0.449"

Note: EU - External upset, IEU - Internal & External upset. Thread of tool joint are right-hand or left hand.

Length Specifications
Type R1 R2 R3
Tubing 6.10 - 7.32 m 8.53 - 9.75 m 11.58 - 12.80 m
Casing 4.88 - 7.62 m 6.72 - 10.36 m 10.36 - 14.63 m
API Oil Pipe & Casing Specifications
Type Label (in) Outside Diameter (mm) Wall Thickness (mm) Grade Type of Thread Length
Casing 4-1/2 114.30 5.21-8.56 H40-P110 STC, LC, BC 4.88-13.5m
5 127.00 5.59-12.70 H40-P110 STC, LC, BC 4.88-13.5m
5-1/2 139.70 6.20-22.22 H40-P110 STC, LC, BC 4.88-13.5m
6-5/8 168.28 7.32-12.06 H40-P110 STC, LC, BC 4.88-13.5m
7 177.80 5.87-22.22 H40-P110 STC, LC, BC 4.88-13.5m
Oil Pipe 2-3/8 60.32 4.24-8.53 H40-P110 NU, EU 6.1-12.8m
2-7/8 73.02 5.51-11.18 H40-P110 NU, EU 6.1-12.8m
3-1/2 88.90 5.49-13.46 H40-P110 NU, EU 6.1-12.8m
4 101.60 5.74-15.49 H40-P110 NU, EU 6.1-12.8m
4-1/2 114.30 6.88-16.00 H40-P110 NU, EU 6.1-12.8m
Grade Mechanical Properties
Grade Yield Strength (MPa) Tensile Strength (MPa) Hardness
J55 379-522 >517 -
K55 379-552 >655 -
N80 552-758 >689 -
L80-1 552-655 >689 23-241
C90 621-724 >689 25.4-255
C95 655-758 >724 -
T95 655-758 >724 25.4-255
P110 758-965 >862 -

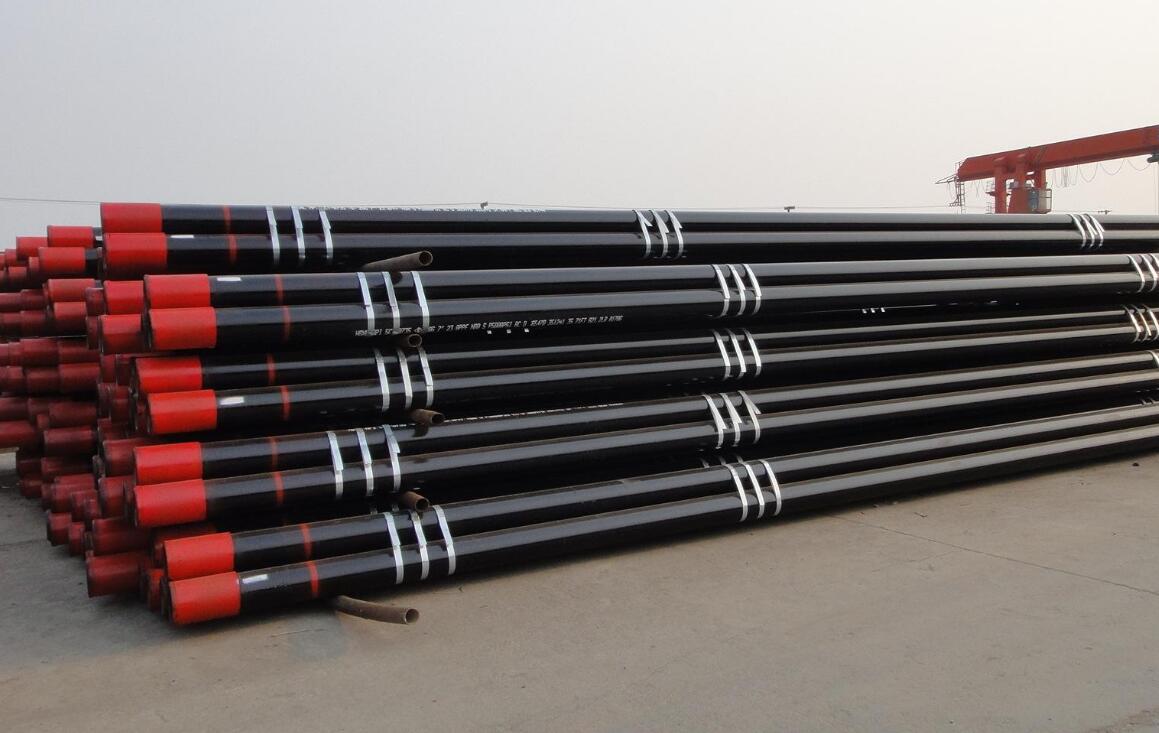

Product Image
API 5CT Casing and Seamless Oil Pipe with L245MB/NB Grade Copper Coated for Long Lifespan
